X-Ray Warning Signs & X-Ray in Use Signs

X-ray warning signs must be installed in two primary locations. First, they are required at all entrances to rooms that contain X-ray generating equipment. This alerts personnel before they enter an area where exposure is possible. Second, a warning label or sign must be placed directly on the X-ray equipment housing itself, as specified by OSHA 1910.1096(e)(4).

Using clear x-ray warning signs is essential for facilities like hospitals, dental offices, and industrial inspection sites. For a permanent installation, an illuminated "X-Ray In Use" sign provides an unmistakable warning that the equipment is active. For temporary or mobile setups, a portable "X-Ray In Use" floor sign can be placed at the boundary of the controlled area.

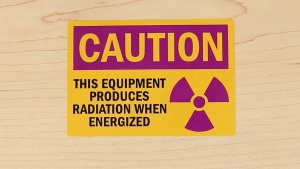

Radiation warning signs must follow a specific, legally-mandated color code to ensure immediate recognition. According to all major regulatory bodies, including the U.S. Nuclear Regulatory Commission (NRC) and OSHA, the sign must feature the trefoil symbol in magenta or purple.

This symbol must be placed on a yellow background. The warning text (e.g., "CAUTION," "DANGER") is typically printed in black for maximum contrast. This distinctive color combination is a universal standard for all radiation signs and radiation warning labels. Whether it is a large caution radioactive materials sign for a storage area or a small radioactive material label for a container, the yellow and magenta/purple color scheme is mandatory for compliance.

This depends on the intensity of the radiation. For most standard medical or dental X-ray units, a general "CAUTION - X-RAY IN USE" sign is sufficient. However, OSHA regulations require more specific information for "High Radiation Areas."

A High Radiation Area is defined as any zone where an individual could be exposed to a dose exceeding 100 mrem (1 mSv) in any single hour. Entrances to these areas must be posted with a . A "Danger - High Radiation Area" sign is used for this purpose, which is distinct from a standard caution x-ray equipment sign.

The financial penalties for inadequate or missing radiation signage can be severe. These violations fall under OSHA's penalty structure. A "Serious" violation, which applies if a hazard could cause death or serious physical harm, can result in fines of over $16,000 per violation. If the violation is deemed "Willful" or "Repeat," the fines can exceed $160,000 per violation.

These penalties underscore the importance of proper OSHA-compliant signage. Ensuring that all restricted areas are clearly marked with the correct signs, such as a radiation area authorized personnel sign or a bilingual x-ray in use sign, is a minor investment compared to the significant financial and legal risks of non-compliance.
